output 6.3

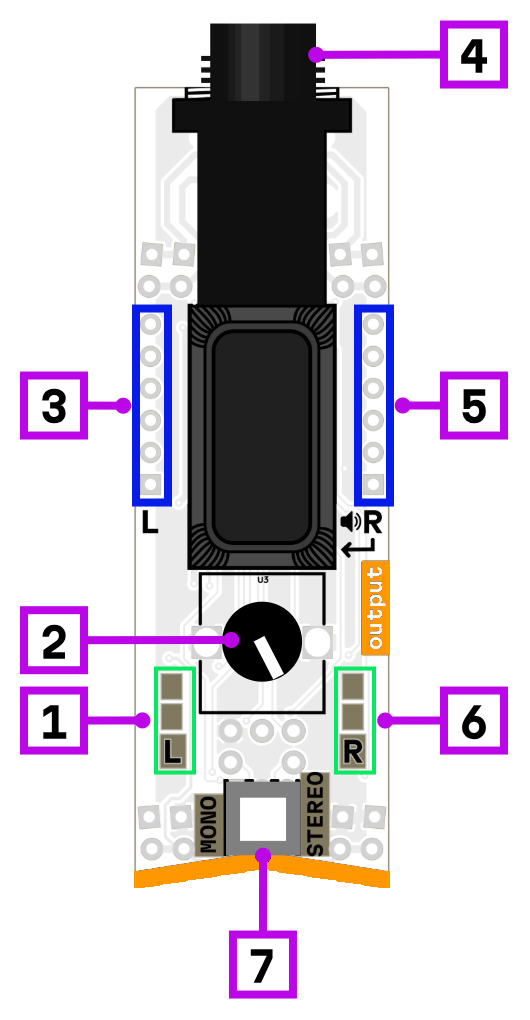

  1. left channel signal indicator
  2. output volume
  3. left/mono channel input
  4. output jack
  5. right/mono channel input
  6. right channel signal indicator
  7. mono/stereo mode switch

This is an output module for connecting headphones, external amplifiers, mixers, or powered speakers. Available in two versions: with a 3.5mm jack and with a 6.3mm jack (this one).

Features

The module includes a volume control knob and level indicators for both left and right channels.

Mono / Stereo modes

The module can operate in two modes, selected by a switch:

  • Mono mode — all 12 inputs are summed together and sent to both left and right output channels.
  • Stereo mode — 6 inputs are summed for the left channel and 6 inputs are summed for the right channel, providing true stereo output.

Power consumption

780 mW
