output 3.5

This is an output module for connecting headphones, external amplifiers, mixers, or powered speakers. Available in two versions: with a 3.5mm jack (this one) and with a 6.3mm jack.

Features

The module includes a volume control knob and level indicators for both left and right channels.

Mono / Stereo modes

The module can operate in two modes, selected by a switch:

  • Mono mode — all 12 inputs are summed together and sent to both left and right output channels.
  • Stereo mode — 6 inputs are summed for the left channel and 6 inputs are summed for the right channel, providing true stereo output.

Built-in speaker (3.5mm version only)

The 3.5mm version features a built-in speaker that automatically activates when nothing is plugged into the output jack. The speaker is connected to the right channel, so it works in:

  • Mono mode — signal is heard through the speaker
  • Stereo mode — only right channel inputs are heard (almost twice as loud)

For maximum speaker volume, use stereo mode and route your signal to the right channel inputs.

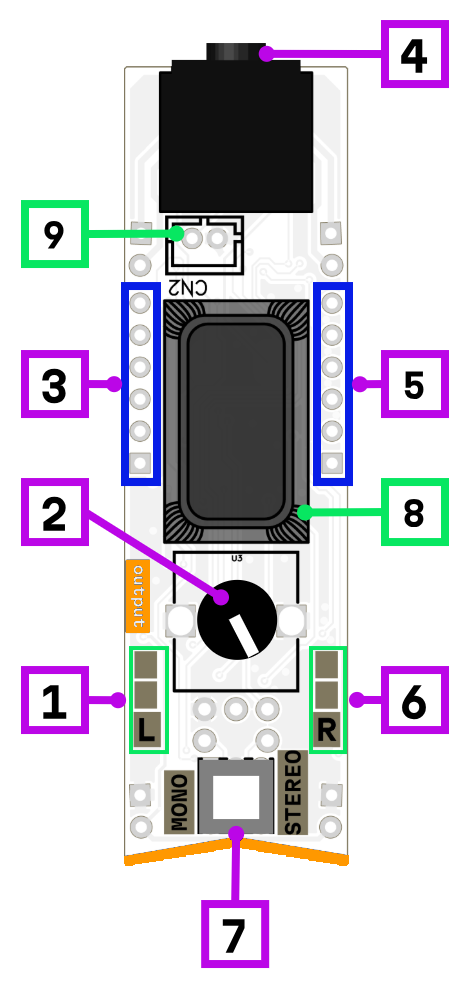

Interface

  1. left channel signal indicator
  2. output volume
  3. left/mono channel input
  4. output jack
  5. right/mono channel input
  6. right channel signal indicator
  7. mono/stereo mode switch
  8. speaker
  9. speaker connector

Power consumption

1740 mW
