stylo¶

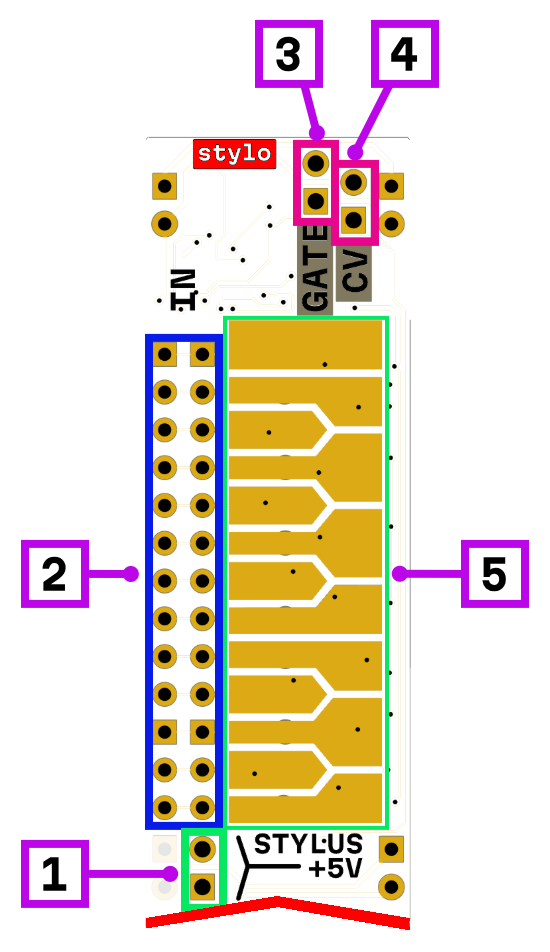

- +5 V for stylus
- key gate inputs (2 per each key)
- gate output
- 1 V/oct output
- key stylus pads
Description¶
Stylus keyboard that outputs CV/Gate signals.
Connect an alligator clip wire or male-female jumper to the +5V pins. Now you can play: touching the keyboard pads outputs a Gate signal (5V) and a 1 V/oct CV signal (0V for the first C note, 1V for the last C note). The CV signal remains constant between key presses.
Each pad is also connected to pins, allowing you to connect external gate/trigger sources to activate notes as if you were playing them by hand.
Power consumption¶
300 mW
