counter

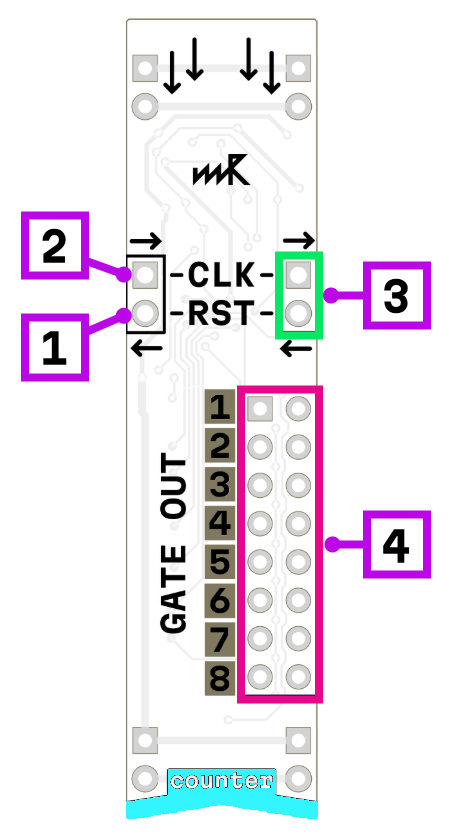

1. reset input
2. clock input
3. counter/sequencer chain output
4. step output ×8 (2 outputs for each step)

How it works

Counts from 1 to 8 and then restarts from the beginning. It advances on each trigger or gate received at the clock input. The reset input resets the counter back to step 1.

Chaining

The chain output pair can be connected to the reset/clock inputs of another counter or sequencer. This allows two counters to work as a single extended counter with more steps — when the first counter completes its cycle, the second one advances.

Custom step count

To create a counter with fewer than 8 steps, connect the (N+1) step output to the reset input. For example, connecting step 5 output to reset will create a 4-step counter.

todo add patch image

Combining outputs

Step outputs are active-low diodes with pull-down resistors, which means they can be combined (wired together) to trigger on multiple steps.

todo add link to chaining

Power consumption

300 mW
